Gebraucht Advantest R3365A in Lake Mary, Florida, USA
Gebraucht
Doubleclick to zoom in
Weitere Fotos
und Informationen erhalten Sie auf Anfrage
Spezifikationen
- Zustand
- gebraucht
- High-input sensitivity
- -145 dBm
- Kategorie
- Spektrumanalysatoren in USA
- Inserat-ID
- 16723318
Beschreibung

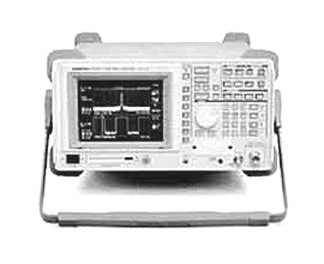

The Advantest R3365A is a refurbished 100 Hz to 8 GHz Spectrum Analyzer with Tracking Generator
R3265A/3265AP/3365A Series offers a large-sized CRT screen in a portable unit and a wide frequency range, allowing measurements from 100 Hz to 8 GHz in a single sweep. Due to a newly developed high purity synthesizer, the series also provides excellent spectral purity of -110 dBc/Hz at 2.6 GHz (10
kHz offset frequency).
This unit performs especially well in measuring the spurious emission intensity of new mobile communications equipment, the bandwidth of occupied frequencies and signal leakage from adjacent channels. In the low-noise mode, the series has a
high-input sensitivity of -145 dBm (1 MHz to 3.6 GHz), so it can easily measure low level signals.
The R3265A Series is provided with a BASIC controller as a standard feature. This feature allows measured data or set conditions to be stored and the free construction of automatic measurement systems without the need for external...
