Gebraucht 1985 Soviet Union P236, 1600 t. capacity in Deutschland
Gebraucht
Doubleclick to zoom in
Weitere Fotos
und Informationen erhalten Sie auf Anfrage
Spezifikationen
- Zustand
- gebraucht
- Baujahr
- 1985
- Lager Nummer
- A1168
- Anzahl
- 1
- Kategorie
- Prägepressen in Deutschland
- Subkategorie
- Hydraulische pressen
- Subkategorie 2
- Metallbearbeitungs- und werkzeugmaschinen / metallpressen
- Inserat-ID
- 36642219
Beschreibung

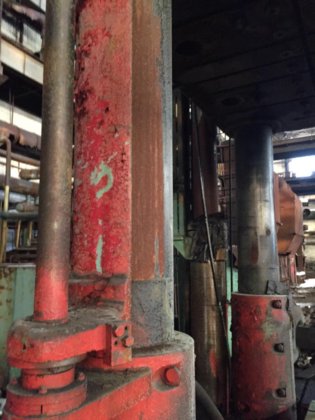

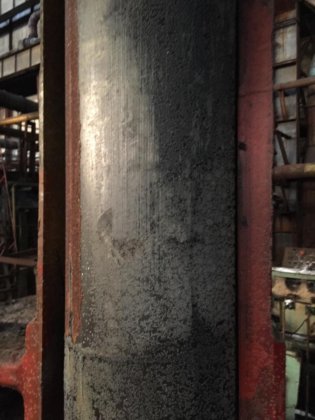

Hydraulische Pressen Soviet Union P236, 1600 t. capacity
Gebrauchtmaschine
Capacity, tons: 1600
Nominal force exhaust traverse, tons:
1 step pressure: 500
2 step pressure: 1000
3 step pressure: 1600
Rated force of clamping traverse, tons:
1 step pressure: 500
2 step pressure: 1000
Rated force of the cylinder return stroke, tons: 320
The exhaust traverse stroke, mm: 2500
The clamping traverse stroke, mm: 2500
Greatest distance between table and exhaust traverse, mm: 3900
Moving table size, mm: 3550 x 3550
Moving table stroke, mm: 3550
Distance daylight between stroke stopper, mm:
from left to right: 2130
front to back: 3730
Cushion capacity, nominal (central ejector), t.: 500
Cushion stroke above bed (central ejector), mm.: 900
Cushion capacity, nominal (side ejector), t.: 630
Cushion stroke above bed (side ejector), mm.: 900
The dimensions of the entire setup, mm:
Length: 18750
Width: 10560
Height: 16400
Height over floor level, mm: 10900
Press weight, tons: 682
YOM: approx.1985
Vom Verkäufer angebotene Dienstleistungen
Dieser Verkäufer bietet Ersatzteile
Dieser Verkäufer bietet Transport & Logistik
